Odd QL start up problems

Post by RWAP »

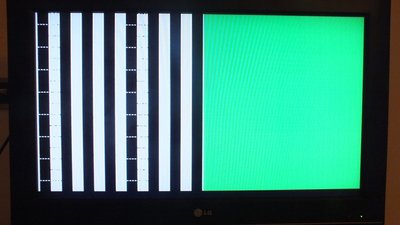

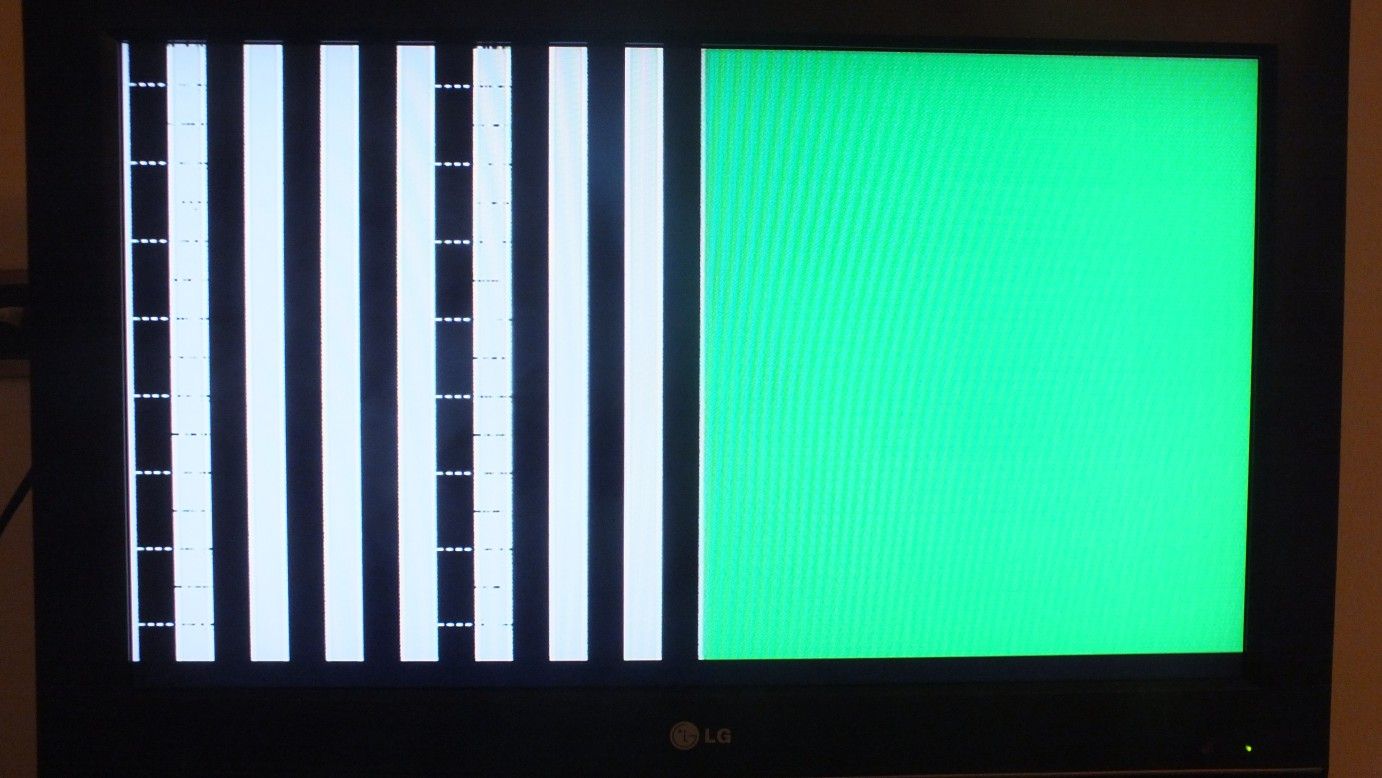

I have never seen a screen like this on a QL....

This is a user in Italy who is having problems - any suggestions as to what might be the problem?

I guess it may be a ram problem....
Attachments


Top
User avatar
tofro
Font of All Knowledge
Posts: 3132
Joined: Sun Feb 13, 2011 10:53 pm
Location: SW Germany

Re: Odd QL start up problems

Post by tofro »

RWAP wrote: I guess it may be a ram problem....
"Working halfway" maybe describes it best :D

Never seen anything like that before. I'd be looking at address line a6 - the green area apparently starts every 64 bytes (assuming it's exactly half the screen)

Tobias


ʎɐqǝ ɯoɹɟ ǝq oʇ ƃuᴉoƃ ʇou sᴉ pɹɐoqʎǝʞ ʇxǝu ʎɯ 'ɹɐǝp ɥO
Top
User avatar
1024MAK
Super Gold Card
Posts: 593
Joined: Sun Dec 11, 2011 1:16 am
Location: Looking forward to summer in Somerset, UK...

Re: Odd QL start up problems

Post by 1024MAK »

Also keep in mind that one of the 74LS257 chips could be faulty.

Mark


:!: Standby alert :!:
“There are four lights!”
Step up to red alert. Sir, are you absolutely sure? It does mean changing the bulb :!:
Looking forward to summer in Somerset later in the year :)

QL, Falcon, Atari 520STFM, Atari 1040STE, more PC's than I care to count and an assortment of 8 bit micros (Sinclair and Acorn)(nearly forgot the Psion's)
Top
prime
Trump Card
Posts: 192
Joined: Fri Feb 18, 2011 8:58 pm

Re: Odd QL start up problems

Post by prime »

1024MAK wrote:Also keep in mind that one of the 74LS257 chips could be faulty.
Indeed, had that problem recently.

Also check for bent legs not going into sockets, had that problem with my Samsung QL last night.....

Cheers.

Phill.
