My friend Miguel Ángel Rojo asked yesterday about applications to view QL screens on the PC, and although he found one that works for him (Multipaint), I was bitten by the possibility of creating something like that myself, and here is the result.
This display only supports (for now) 8-color mode (MODE 8), but I will expand its capabilities to support mode 4. <- UPDATED!
The program looks like this:
It consists of an HTML file that you can use online or download to your computer, and that allows you to open a file in QL format and display it in the appropriate 4:3 aspect ratio.
Nice work, Javier. I just tried it now, works OK on Edge browser on Windows 10 on my PC.
I hope I'm correct in assuming that
a) Javascript needs to be enabled in the browser (not looked at the HTML to check)?
b) it only handles 512 x 256 QL screens at the moment?
For me, a natural development would be to add support for higher resolution screens and PIC files and of course for high colour screens. I expect most people will only use it to display mode 4 and 8 QL screens though..
As higher resolution screens don't include width and height dimensions, you have to guess the width and height based on file sizes corresponding to common screen dimensions, e.g. 640x480 pixels (76800 bytes), 800x600 pixels (120000 bytes), 1024x768 pixels (196608 bytes).
PIC files have the 10 bytes before the graphics data, holding:
word - ident $4AFC
word - width in pixels
word - height in pixels
word - line increment (number of bytes from start of one line to the next)
byte - mode number
byte - spare, unused

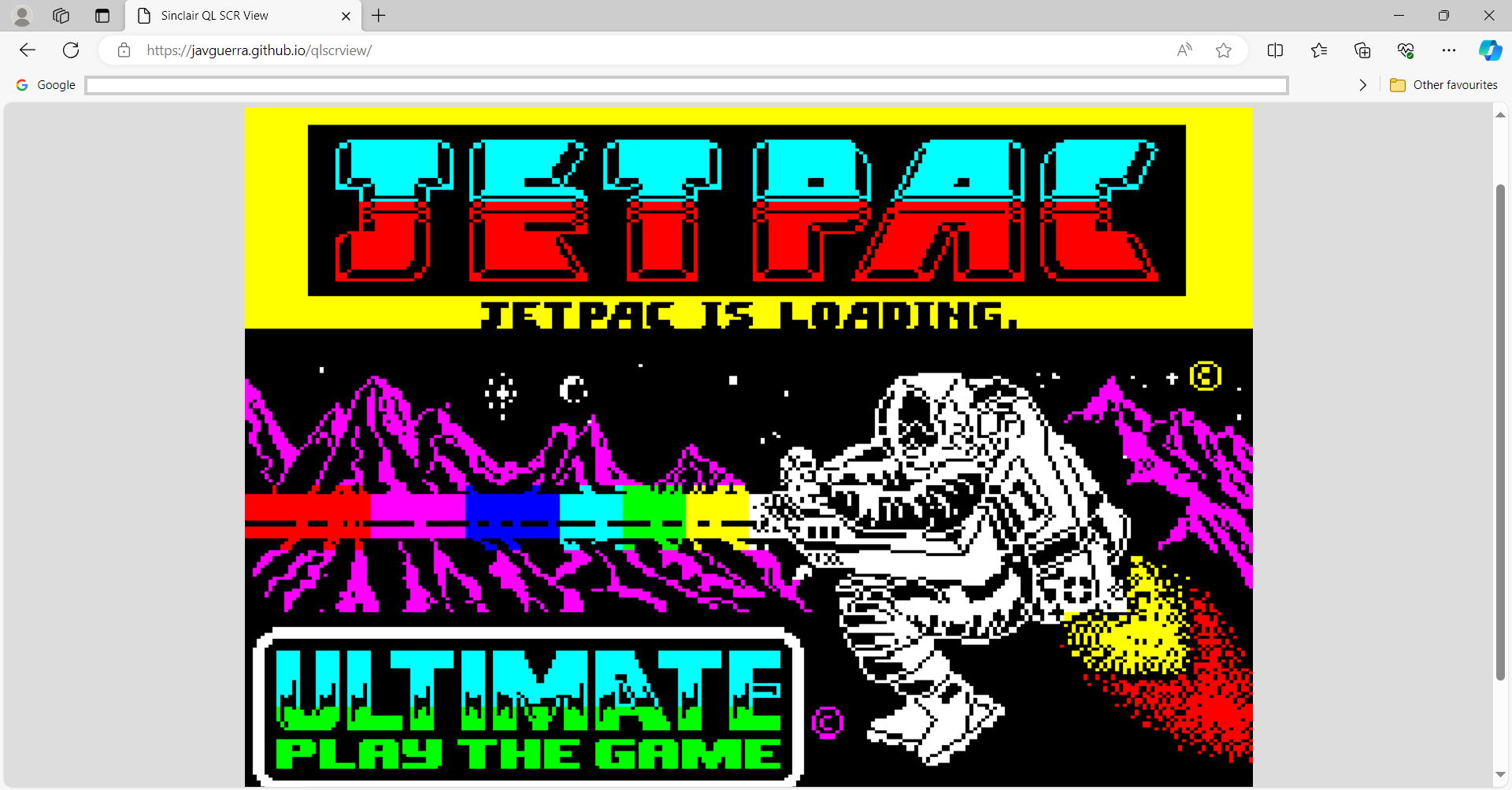

Here's a rendition from your tool of my favourite 32k QL mode-8 _scr, courtesy of ACG/Ultimate - one I use for testing my Networking developments (hope I'm not encroaching on copyright - if so I'll delete it immediately.)
dilwyn wrote: Mon Feb 05, 2024 10:44 am
Nice work, Javier. I just tried it now, works OK on Edge browser on Windows 10 on my PC.
I hope I'm correct in assuming that
a) Javascript needs to be enabled in the browser (not looked at the HTML to check)?
b) it only handles 512 x 256 QL screens at the moment?
For me, a natural development would be to add support for higher resolution screens and PIC files and of course for high colour screens. I expect most people will only use it to display mode 4 and 8 QL screens though..
It's right. JavaScript needs to be enabled to work.
I hadn't thought about continuing to work on other modes yet, because I'm reserving the weekend to unify the two modes into a single HTML, but the information you give me is very useful, and I'm going to see if I can do it.

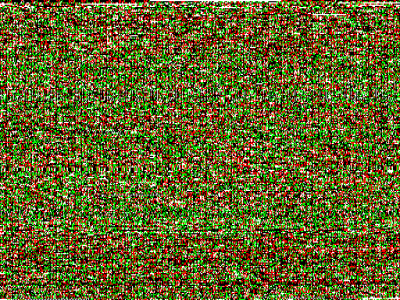

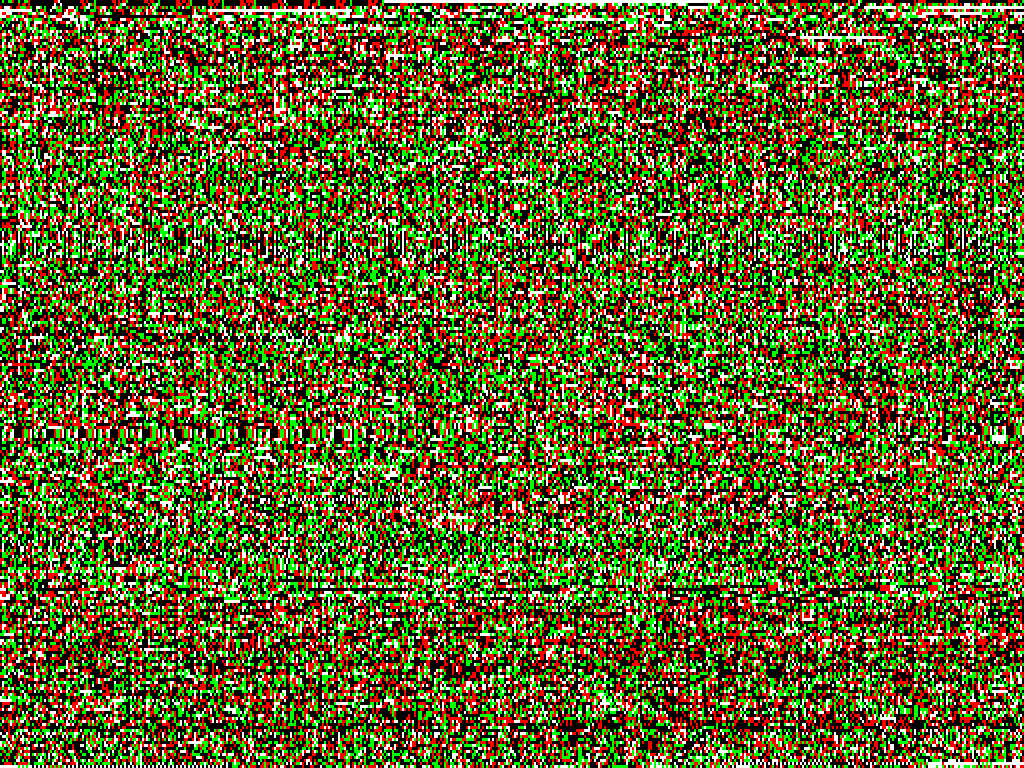

A curious thing. Since the application does not check the file extension, because there is no convention for the extension, and since QL images are data without a descriptive header, we can load anything, for example, a ROM image. What you see here is a screenshot of Minerva 1.89. Obviously only 32 Kb are shown. Do you recognize the image? XD
