Yes, it is. And, it's an early issue 4 PCB used at DVT/PVT stage in about February/March 1984.mk79 wrote:Wow, an original unpopulated QL PCB, that is pretty cool.

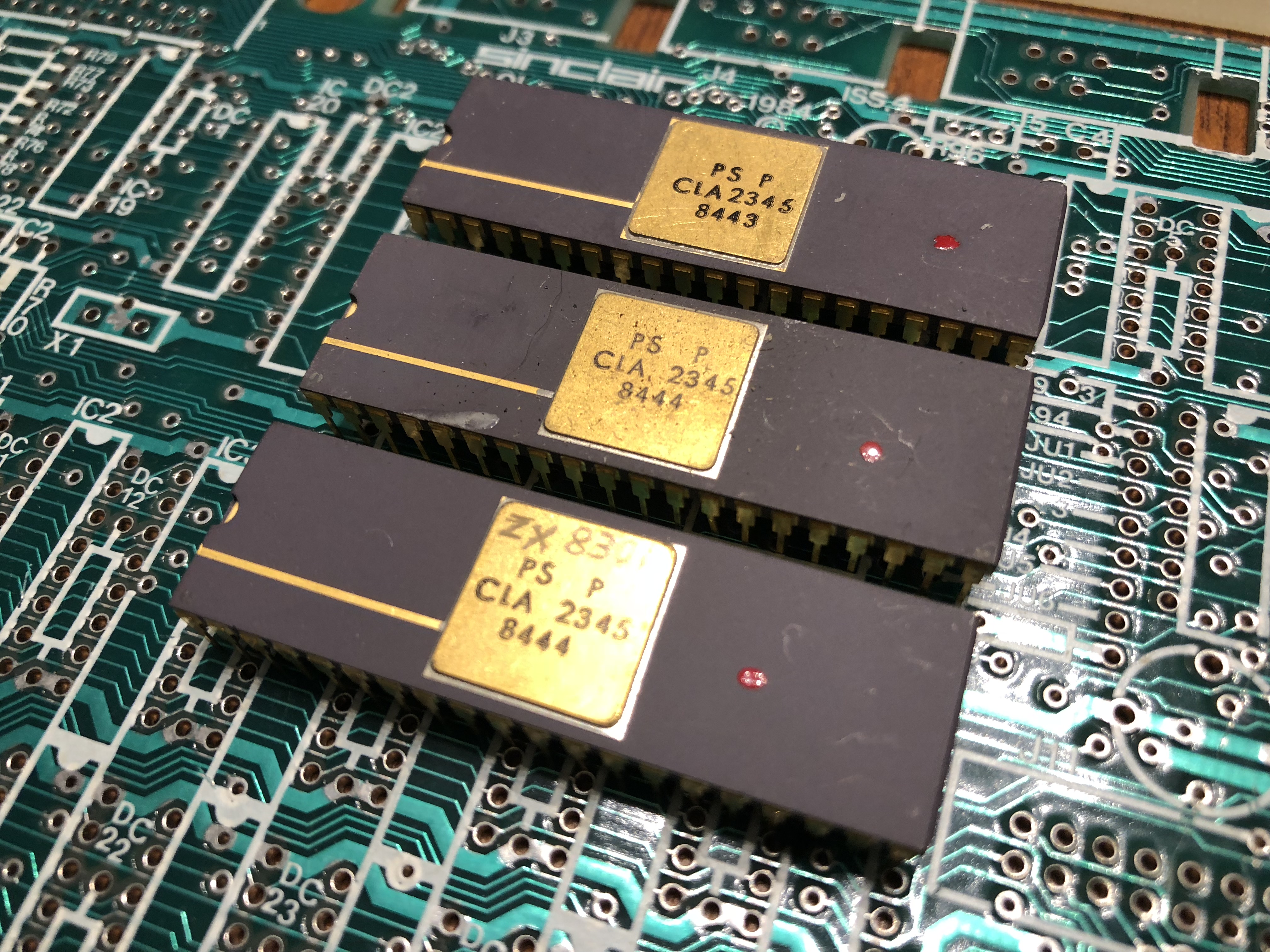

At Paul's place we went through the remaining stock of his former Mechanical Affinity business. Paul still has his famous "QL is space" T-Shirt "Where No QL Has Gone Before". I selected the most desirable items to me and took them with me to give them a new home at my Lake Valley Labs. Another highlight alongside the D03 QL (Issue 4 PCB, PM firmware) and the naked Issue 4 PCB are some CLA2345 DVT samples produced in week 43 and 44 of 1984. The CLA2345 is the 2nd edition of the ZX8301 ASIC which was designed for the FCC and VDE compliant editions of the QL eventually manufactured by SAMSUNG in Korea (S13 build standard for US, SG18 build standard for Germany). Full story coming soon in an unboxing video on YouTube. Stay tuned...mk79 wrote:The rest of course, tooLooking forward to hearing what you did a whole month over there
