CPLD replacement for ZX8301

[martyn_hill]

Hi everyone!

Thanks to Leon's incredible perseverance, I was able to test his latest (S)GC compatible update to the basic CPLD-based 8301 ULA replacement.

I'm delighted to report that it works a treat on my (Tetroid cloned) Gold and Super Gold cards once reprogrammed!

I am yet to explore the optional 15-colour (RGB-I) mode and will share my findings here in due course.

Thanks again, Leon!

[lliont]

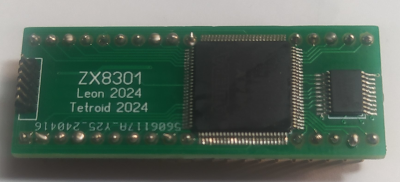

Vitaliy (tetroid) designed a very compact pcb of almost the size of the ZX8301 IC for the cpld replacement and I adjusted the pinout of the cpld to fit.

So now there is a nice compact version that works with GC and SGC.

[Cristian]

So cooooool!

[Pr0f]

Excellent news!

[Popopo]

Tiny and beautiful!
thank youuu!

[tetroid]

The black version

[Popopo]

Wauuu,
bravo! Such a black beauty!
And great your idea about the pins removed.

Is it a OpenSource & hardware development?

[Peter]

Vitaliy (tetroid) designed a very compact pcb of almost the size of the ZX8301 IC for the cpld replacement and I adjusted the pinout of the cpld to fit.

Amazing! That would have been my favorite from the start. What is the easiest way to get hands on it?

[Peter]

No reply = not yet available?

[lliont]

Ask Tetroid about the availability of the board.
