SOLVED !! resurrecting one time the original rom plus kludge

[techy]

Must be my old age ,


But what do i need to make a one-time project of a set of rom's plus the kludge ?

Which version of rom and how to split them ?

[Chr$]

You need to split the 48K ROM file into equal chunks of 16K each (starting 0000h, 4000h and 8000h). The first 2 parts fit in the internal QL sockets and the last 16K goes on the ROM Dongle.

A good ROM dongle PCB from Aalea can be found here:

viewtopic.php?p=60926

The dongle has 2 spaces/sockets, one for the last chunk of the 48K OS ROM and another for the 16K external ROM starting at C000h, for TK2 or many other ROM extensions that normally occupy that space.

And you'll have to play around with the soldered jumpers on the QL PCB to configure it for 2x 16K on the main board. Details on the configuration is on the service manual schematic page.

[techy]

Thank you ,

All clear now , i have that pcb so only some time needed to get everything ready

[techy]

Alright ,

3 16k eproms made out of the rom .bin ,

pcb equipped with all components .

= only the jumper settings are totally unclear ,

Can you please give me a bit more info in that please

[Chr$]

Do you have IC17 present? That's a 74LS00 to the right of the right ROM or at least a socket for one. If not, it'll be a bit more complicated.

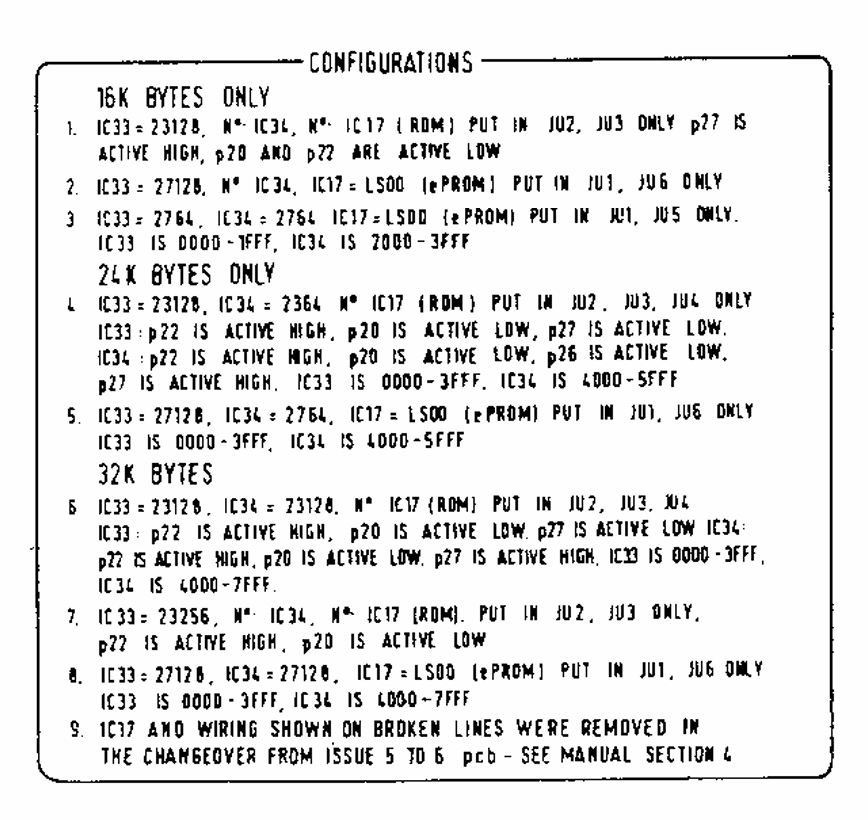

The above shows the ROM config from the schematic.
No. 8 is the one you want.... 2x 27C128 (or you can also use 27C256 with the data written to the higher part of the chips or simply written twice to fill exactly 32k).

[Marcel_X]

I was planning to order a few of the Kludge boards designed by Alvaro. Seems like he has done a neat job. Chr$, did you verify that the dimensions are close enough to the original?

I bought a vacuum former a while ago and I would like to make some casings as well. Unfortunately I don't have an original. And hats off for having the guts to poor plaster in the original one

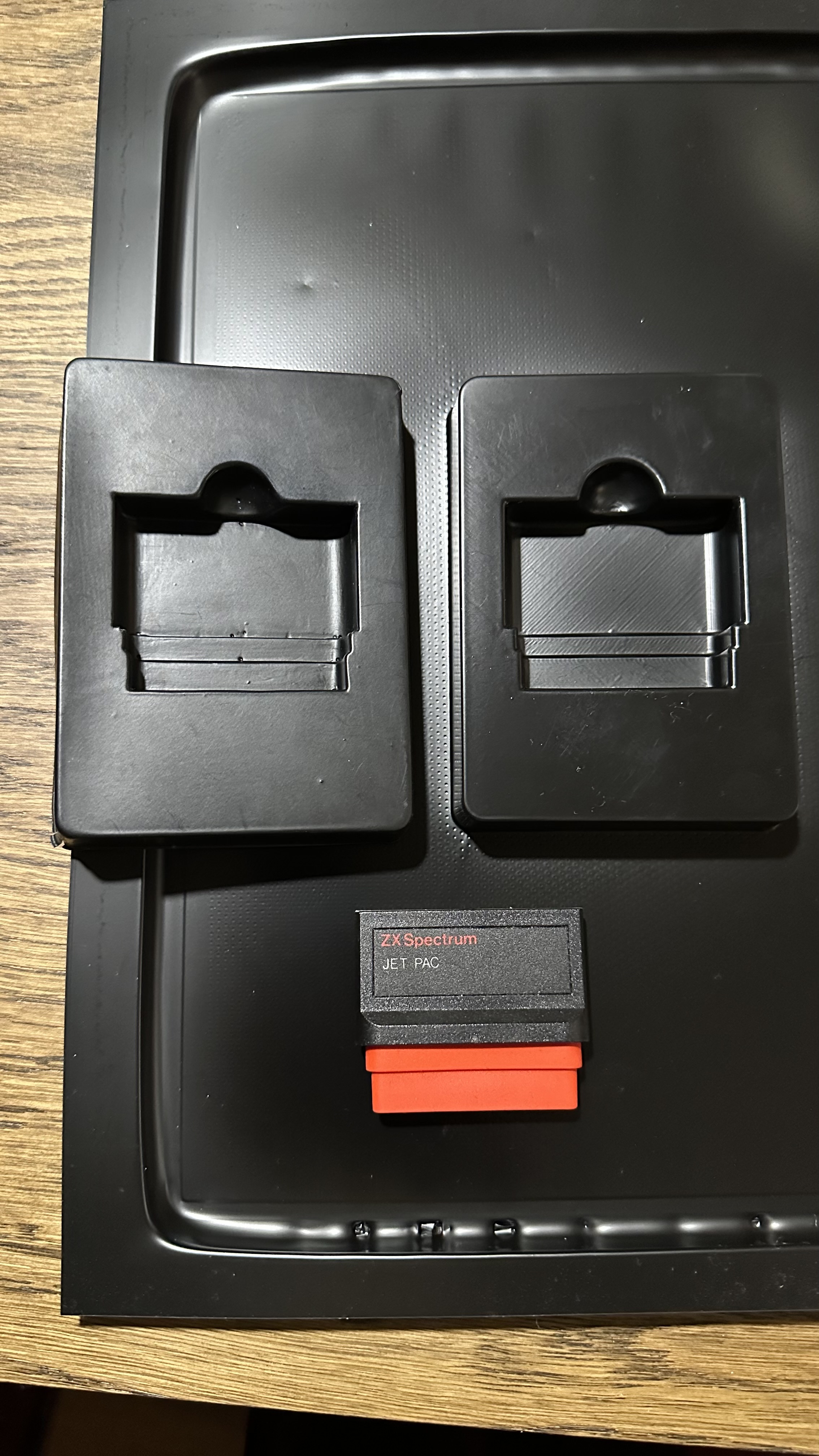

In the other thread you mentioned that the upper part of the mold should be 21mm. Alvaro's version is only 15mm. And there are very few images that I could find online. If you or anyone else has some pictures from all sides and a few basic dimensions I could model up a mold that is printable. I did a similar thing for the insert of a ZX Spectrum cartridge. Still need to sand it a bit more, but the first pull was already usable.

Can you guess the thickness of the original material? I have black HIPS in various thicknesses.

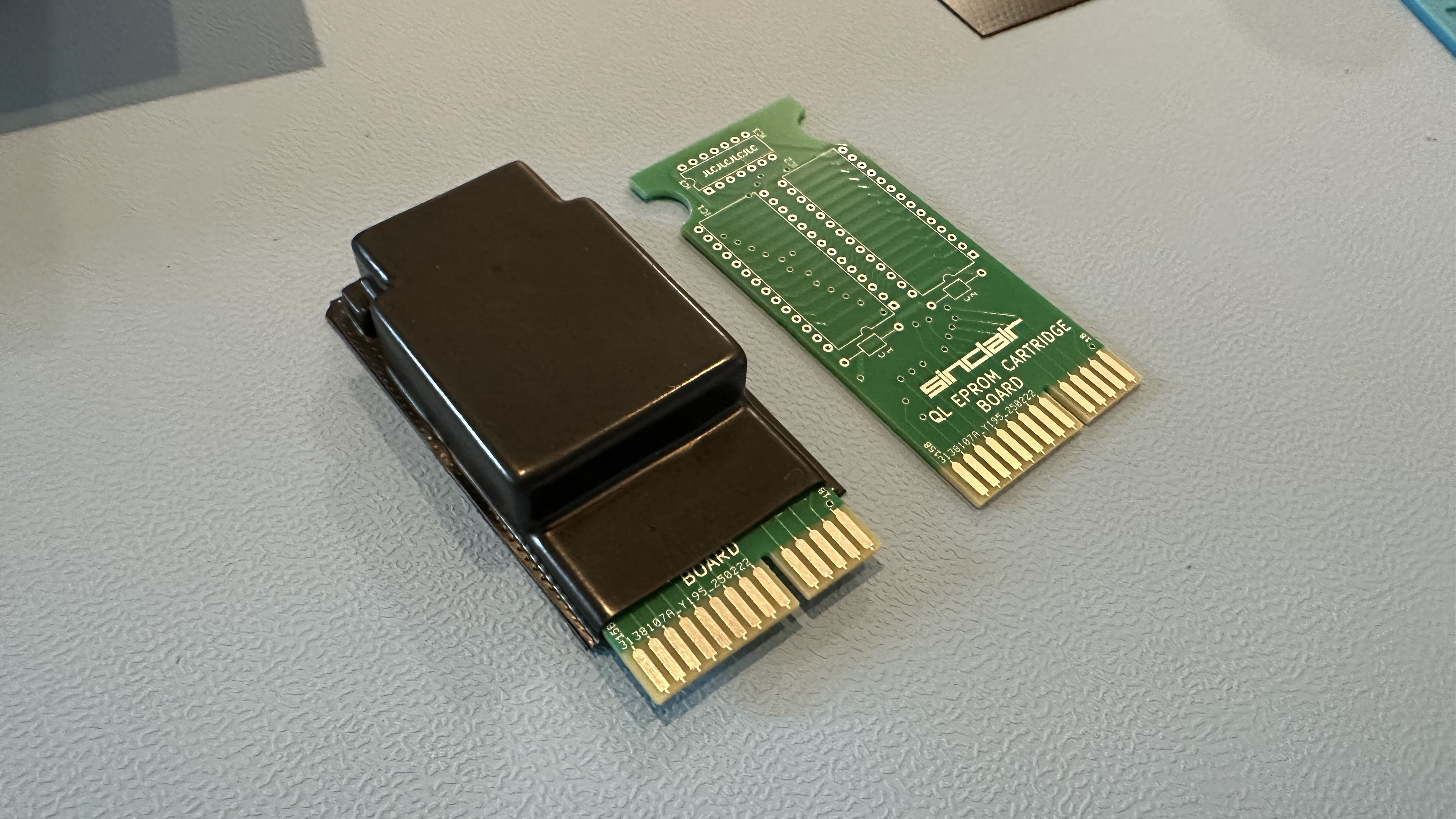

Original on the left, copy on the right.

[techy]

@Chr$ ,

Is ic 17 needed to get the 3 rom option working ??

Luckily i have a iss5 board available with an empty ic 17 socket .

[Marcel_X]

Hi Techy,

I'm not an expert, but I just had a look in the service manual and the issue 5 schematics. By the looks of it, if the 74LS00 is not installed both sockets are in parallel.
With the 74LS00 in place and the necessary links (!) you should be able to use two 16K internal EPROMs. Maybe CHR$ can comment on this.

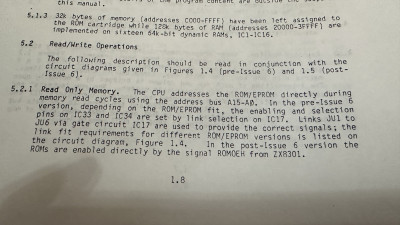

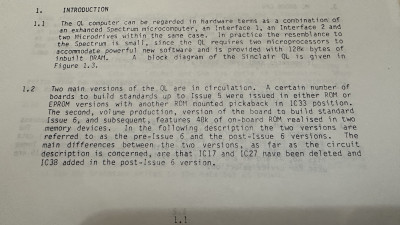

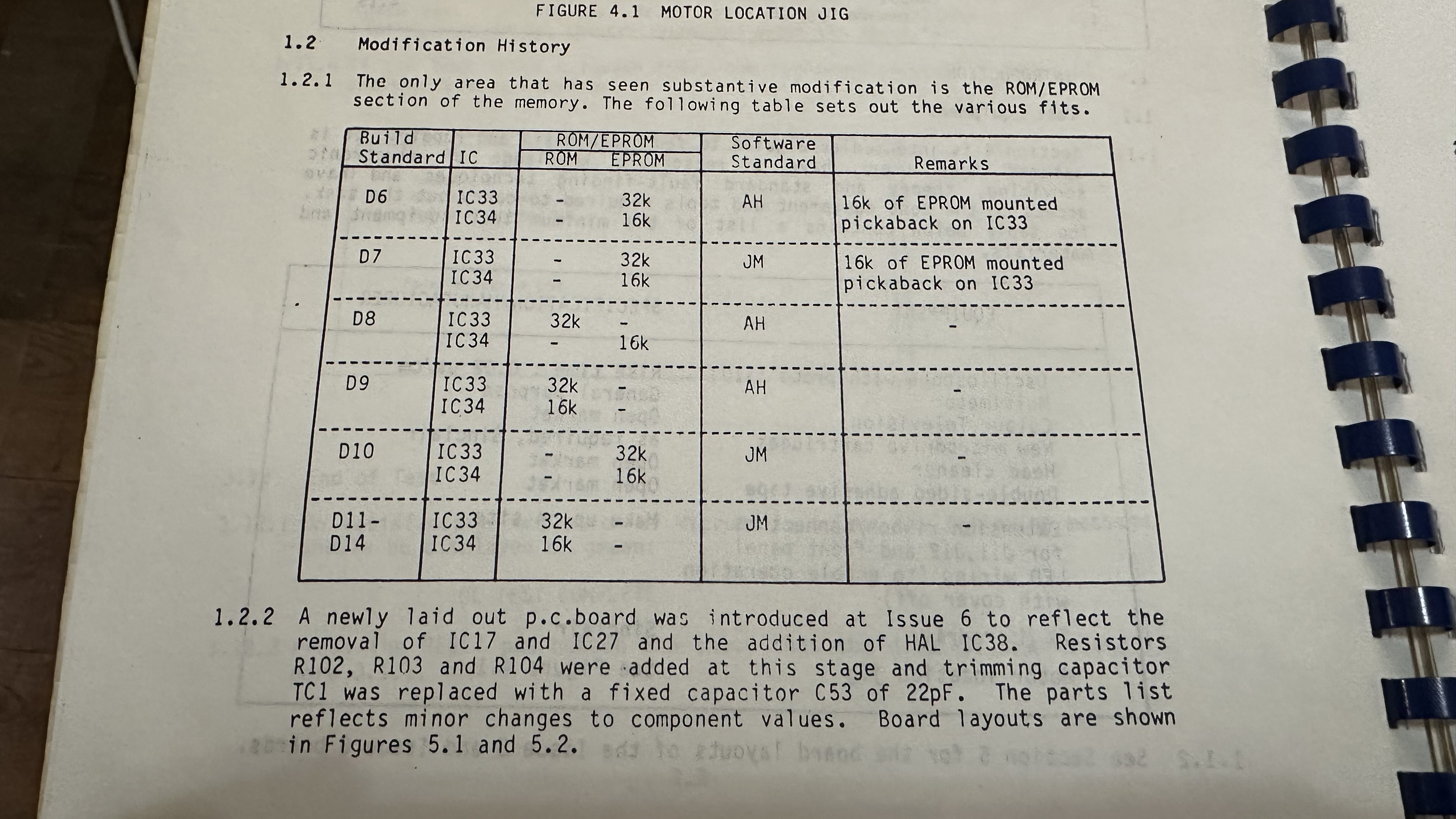

I've taken some pictures from the service manual which may be of help.
Do you already have your ROM split? I have quite a few 27128 laying around. Do you have a programmer?

[Marcel_X]

Oh, and thanks to Techy I now have two Kludge boards. I made the molds that I believe Alvaro designed.
First draw was sort of okay. Unfortunately I only have 0.5mm black HIPS for now, so these are a bit flimsy. I did a second draw with 1.0mm HIPS and these feel a lot better. I will try to do another one tomorrow with 1.5mm. Unfortunately also in white (limited edition...?)

The current molds don't have any draft angles, so it is f#^$%ng hard to release them from the plastic without deforming it. And what I read in another post is that the height might not be correct. If anyone could take some pictures straight from all sides with basic measurements, I could redraw the molds. I found a few decent pictures on the forum, but they were taken in perspective. I'd like to use pictures in my CAD program as a canvas to draw onto.

If anyone can confirm the actual thickness of the plastic of the original, that would be much appreciated! And if there's one for sale, I'd gladly pay for that!

Cheers, Marcel

Molds

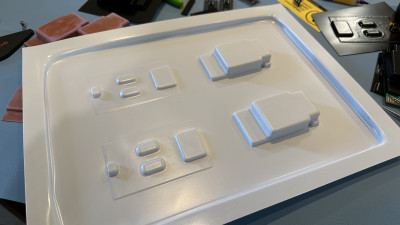

First draw with 0.5mm HIPS

Sort of fits, but a bit flimsy

Second draw with 1.0mm white HPS

[techy]

@ Marcel ,

#1
I am currently modifying one of my older ql's to go for the 3 x 16k route.

Eproms have been made .

ls00 has been found , links need to be soldered.

#2

3d vacuum looks very good maybe the 1mm is the thickness to go for .
