Green Screen problem and poss. a new ROM.

Post by Chr$ »

I took delivery of an Italian QL today. Excellent condition, I was very pleased with it (it means I have a spare Italian QL now as I only bought this one because it came with the ​original Italian manual).

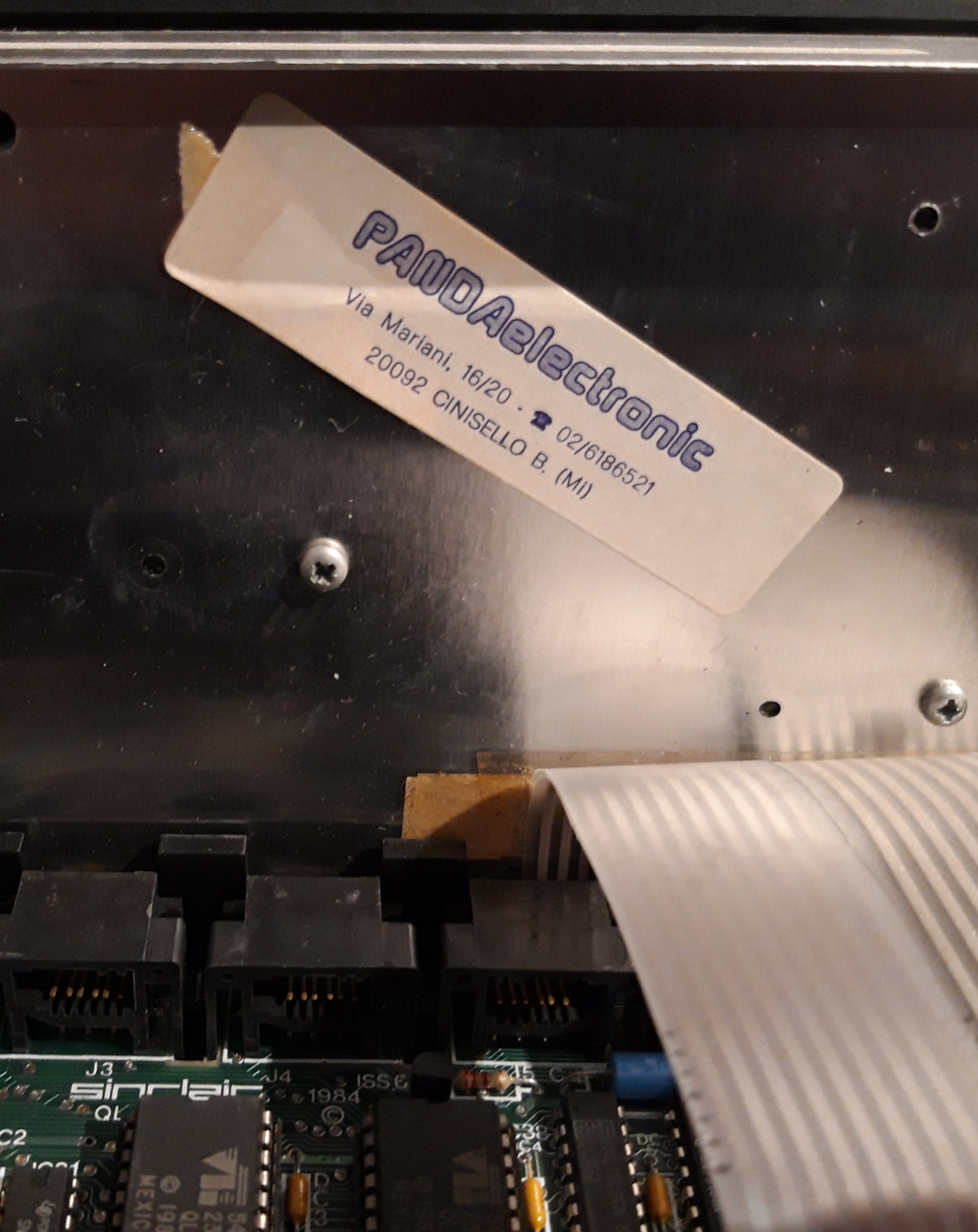

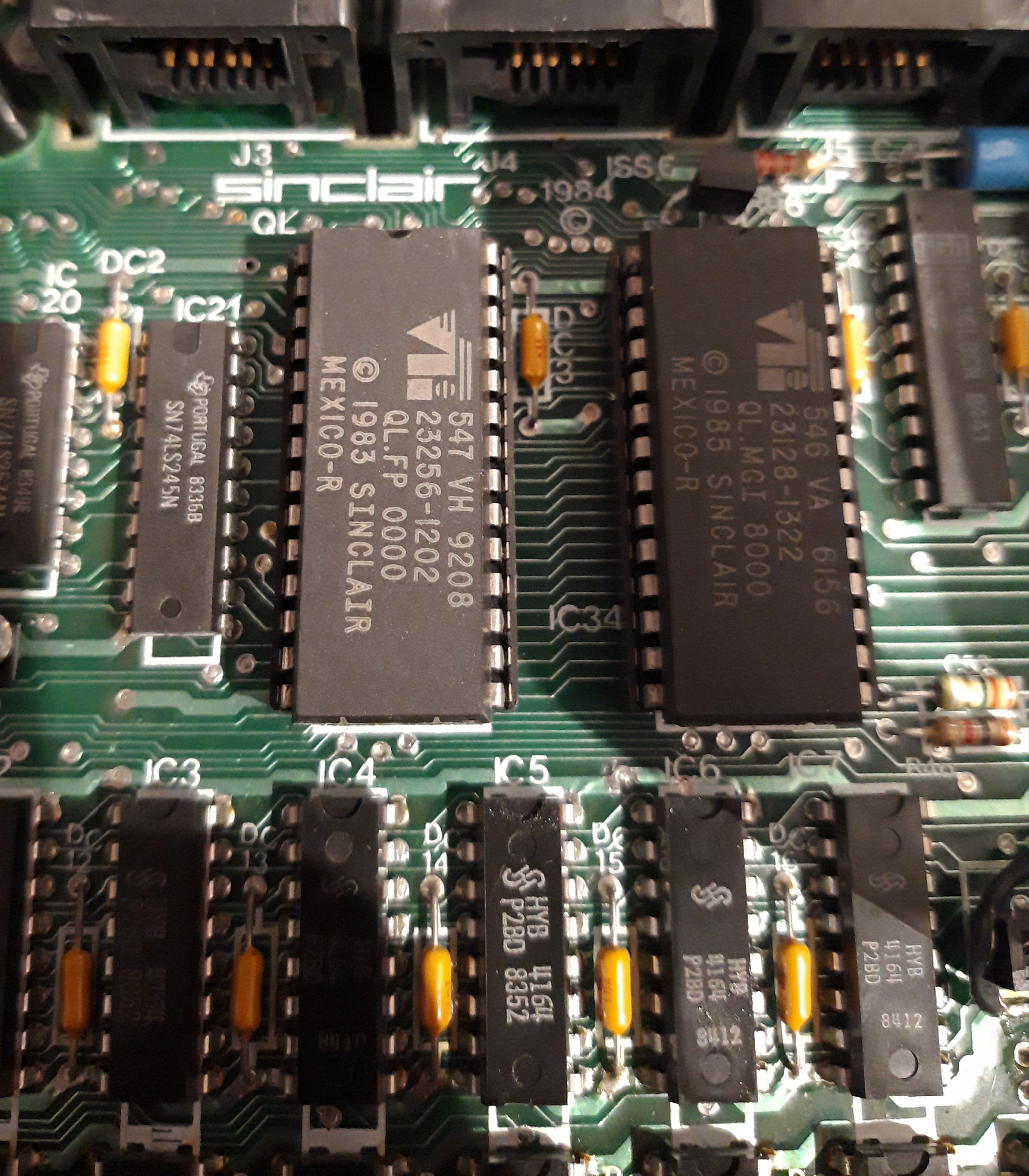

I powered it up and it worked fine, with the exception of the CTL key (and possibly others) so clearly it needs a membrane. I opened it up to see exactly what was inside and found an Issue 6 board with an Italian repair sticker and an unusual ROM combination - FP as the 0000 ROM and MGI as the 8000 ROM. I always thought that the 8000 right hand MGx language ROMs were always paired with MG in the left socket. So I removed them to dump the data.

I reassembled after cutting off a cm of one of the k/b connectors as it was visually split near the socket.

And it's now broken! When powered up or reset it goes through the tweed screen and then all I get is a plain green screen.

I've re-socketed all the socketed chips, de-oxited the sockets, checked the pins and alignment was correct and still a green screen. I even tried a Minerva ROM to see if that would offer more info, but it does exactly the same and also just shows a green screen.

Has it developed a RAM issue or do you think it's ROM related and perhaps a dodgy ROM socket that didn't like having its chips pulled. I thought it was odd that Minerva does the same.


https://QXL.WIN
Collector of QL related computers, accessories and QL games/software.
Ask me about felt pads - I can cut them to size and they have proven excellent for mdv data recovery.
User avatar
Chr$
QL Wafer Drive
Posts: 1395
Joined: Mon May 27, 2019 10:03 am
Location: Sachsen, Germany
Contact:

Re: Green Screen problem and poss. a new ROM.

Post by Chr$ »

I think I've fixed it, or rather, found the issue. I went through pickabacking a known working 4164 on top of the RAM chips. Most made no difference, some resulted in a white screen instead of green, but one (IC3) resulted in a normal F1/F2 boot screen!

So out comes the m/b. Must have just been a coincidence I suppose.


https://QXL.WIN
Collector of QL related computers, accessories and QL games/software.
Ask me about felt pads - I can cut them to size and they have proven excellent for mdv data recovery.
User avatar
Ruptor
Gold Card
Posts: 420
Joined: Fri Dec 20, 2019 2:23 pm
Location: London

Re: Green Screen problem and poss. a new ROM.

Post by Ruptor »

Chr$ wrote:I think I've fixed it, or rather, found the issue. I went through pickabacking a known working 4164 on top of the RAM chips. Most made no difference, some resulted in a white screen instead of green, but one (IC3) resulted in a normal F1/F2 boot screen!
One bad ram wouldn't stop the processor from doing something to the screen would it otherwise the minerva couldn't say which chip was faulty. Take a close look at the board around that Ram chip and perhaps gently press the board as is to see if things change.


User avatar
Chr$
QL Wafer Drive
Posts: 1395
Joined: Mon May 27, 2019 10:03 am
Location: Sachsen, Germany
Contact:

Re: Green Screen problem and poss. a new ROM.

Post by Chr$ »

I checked for shorts too in the address and data lines. It's very stable with the extra chip RAMmed (see what I did there) onto IC3. Could a really bad RAM chip cause a green screen? The service manual says a few things about the green screen, including:
2.2.14 To summarise, if on power up a white or green screen is displayed, it indicates that the RAMs are in general working, and that the machine is very close to being fully operational. It suggests a data or address line short-circuit or a faulty RAM chip.
Regarding the FP ROM - it's very similar to MG, I think about 80 bytes are different. Looks like FP is an earlier version of MG because it has a 1983 copyright date and the other MG related chips are all 1985. Here is a combined FP+MGI attached, MGI starts as normal at 8000h.
Attachments
FPwithMGI.zip
(34.56 KiB) Downloaded 74 times


https://QXL.WIN
Collector of QL related computers, accessories and QL games/software.
Ask me about felt pads - I can cut them to size and they have proven excellent for mdv data recovery.
User avatar
Ruptor
Gold Card
Posts: 420
Joined: Fri Dec 20, 2019 2:23 pm
Location: London

Re: Green Screen problem and poss. a new ROM.

Post by Ruptor »

Chr$ wrote:It's very stable with the extra chip RAMmed (see what I did there) onto IC3.
Do you mean IC5? It won't hurt to change the chip. If the ram was pulling or shorting lines I can't see how the piggyback would work. Perhaps the original chip is not in circuit maybe broken inside.


User avatar
tofro
Font of All Knowledge
Posts: 3123
Joined: Sun Feb 13, 2011 10:53 pm
Location: SW Germany

Re: Green Screen problem and poss. a new ROM.

Post by tofro »

The piggypack RAM diagnostics method works in surprisingly many cases. Obviously, you don't want to keep it like that forever and the faulty one must go.

Minerva will be doing its best to even boot with faulty RAM and might even work with less than 128kBytes intact - But there are cases (when the "working" RAM is just not enough to get the system up) where it must wave a flag.


ʎɐqǝ ɯoɹɟ ǝq oʇ ƃuᴉoƃ ʇou sᴉ pɹɐoqʎǝʞ ʇxǝu ʎɯ 'ɹɐǝp ɥO
User avatar
Ruptor
Gold Card
Posts: 420
Joined: Fri Dec 20, 2019 2:23 pm
Location: London

Re: Green Screen problem and poss. a new ROM.

Post by Ruptor »

tofro wrote:Minerva will be doing its best to even boot with faulty RAM and might even work with less than 128kBytes ntact
I was assuming Minerva was only using CPU registers and ROM until it had checked the RAM which is the normal way to write boot code but clearly not. :roll:


User avatar
mk79
QL Wafer Drive
Posts: 1349
Joined: Sun Feb 02, 2014 10:54 am
Location: Esslingen/Germany
Contact:

Re: Green Screen problem and poss. a new ROM.

Post by mk79 »

Ruptor wrote:
tofro wrote:Minerva will be doing its best to even boot with faulty RAM and might even work with less than 128kBytes ntact
I was assuming Minerva was only using CPU registers and ROM until it had checked the RAM which is the normal way to write boot code but clearly not. :roll:
Of course that is the case, it does not use the RAM until after the test.


User avatar
tofro
Font of All Knowledge
Posts: 3123
Joined: Sun Feb 13, 2011 10:53 pm
Location: SW Germany

Re: Green Screen problem and poss. a new ROM.

Post by tofro »

What I am trying to say is that Minerva may return from the test (passed) with a lesser amount than 128kBytes and go on to boot.

Tobias


ʎɐqǝ ɯoɹɟ ǝq oʇ ƃuᴉoƃ ʇou sᴉ pɹɐoqʎǝʞ ʇxǝu ʎɯ 'ɹɐǝp ɥO
User avatar
Pr0f
QL Wafer Drive
Posts: 1563
Joined: Thu Oct 12, 2017 9:54 am

Re: Green Screen problem and poss. a new ROM.

Post by Pr0f »

tofro wrote:What I am trying to say is that Minerva may return from the test (passed) with a lesser amount than 128kBytes and go on to boot.

Tobias
Agreed - it does say this in the Minerva manual - and warns you may end up with not very much RAM if this happens!

My guess is that if the faulty RAM is in the first bank that handles the 2 screens - then that's when you are likely to get the solid screen colour if the faulty memory is very low in the memory range. Sometimes pressing reset multiple times can sometimes get it to show F1/F2 screen - this might suggest a refresh issue - could be faulty RAM or ZX8301 chip. Also - make sure to remove any cards that also extend the RAM - such as Expansion RAM, Trump, or Gold (+super) card.
